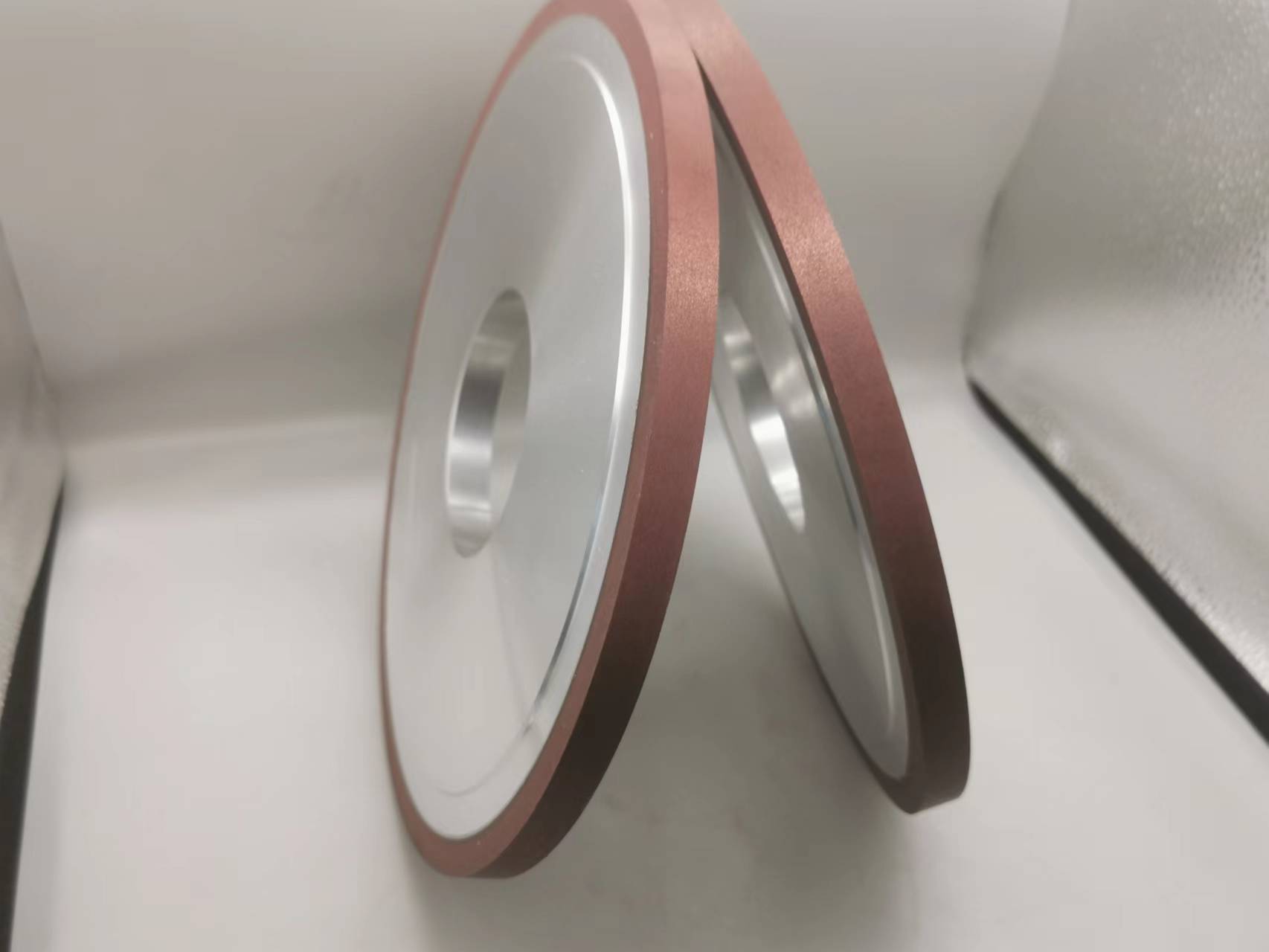

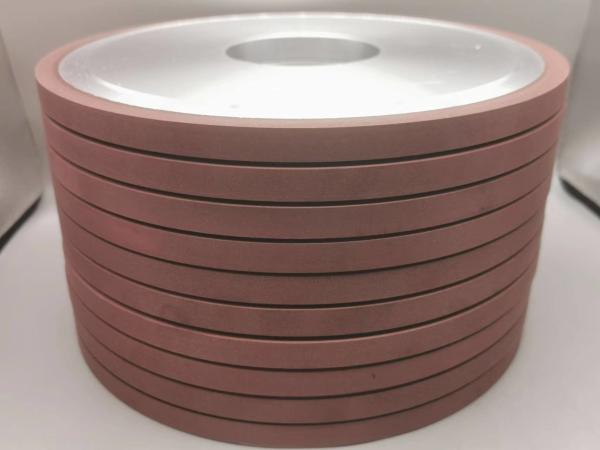

250*76.2*12*10mm Resin Bonded Diamond Grinding Wheel For Tungsten Carbide Knife
The resin bonded diamond wheel has a good polishing effect and good sharpness. It is not easy to block in the grinding process. The specific features are as follows:
① The resin grinding wheel has high grinding efficiency, while the grinding wheel consumption is relatively slow;
② Good self-sharpening. The heat value is small in grinding process. And it is not easy to block so that reduce the workpiece burn;
③ The grinding wheel has a certain elasticity, which is conducive to improve the surface roughness of the workpiece. It is mainly used for fine grinding, semi-fine grinding, knife grinding, polishing and other processes;
④ Resin bond diamond grinding wheel are cured under the low temperature. The production cycle is shorter than other bond grinding wheels. Due to the resin bond has the mobility, it is easy to make complicated surface of the grinding wheel.
| Size | Diameter | Thickness | Inner hole | Grit Size |
| | 250mm | 12mm | 76.2mm | D46 |
Advantages
light weight ,easy to take
Excellent surface roughness and flatness
High processing speed working fast
Low temperature curing of grinding wheel, short production cycle, convenient, quick and simple equipment and supply process
Applications
Mainly used for grinding high-hard alloys, non-metallic materials, cutting hard and brittle hard alloys, non-metallic minerals, etc. Such as cemented carbide, ceramics, agate, optical glass, semiconductor materials and wear-resistant cast iron, stone, etc.Specially used to all kinds of sbrssives machine
If you need to customize, please provide the following information:
1. Dimensions, including outer diameter, aperture, thickness, width and thickness of abrasive layer;
2. Abrasive, abrasive sand particle and concentration;
3. Adhesive;
4. Wheel application;
5. Pictures and drawings of wheels;
We can then design and quote for you
