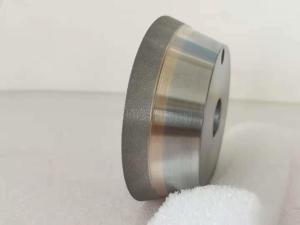

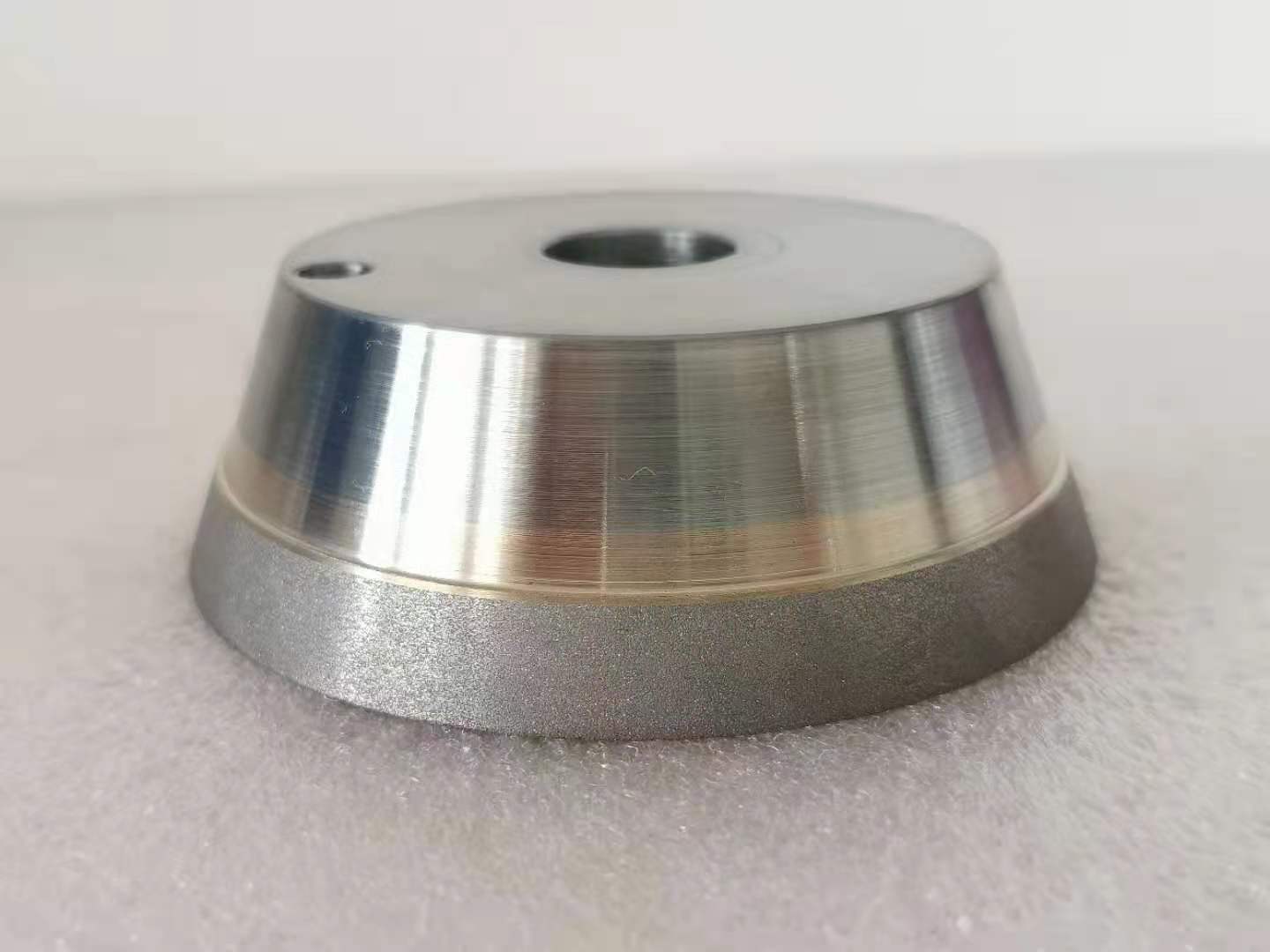

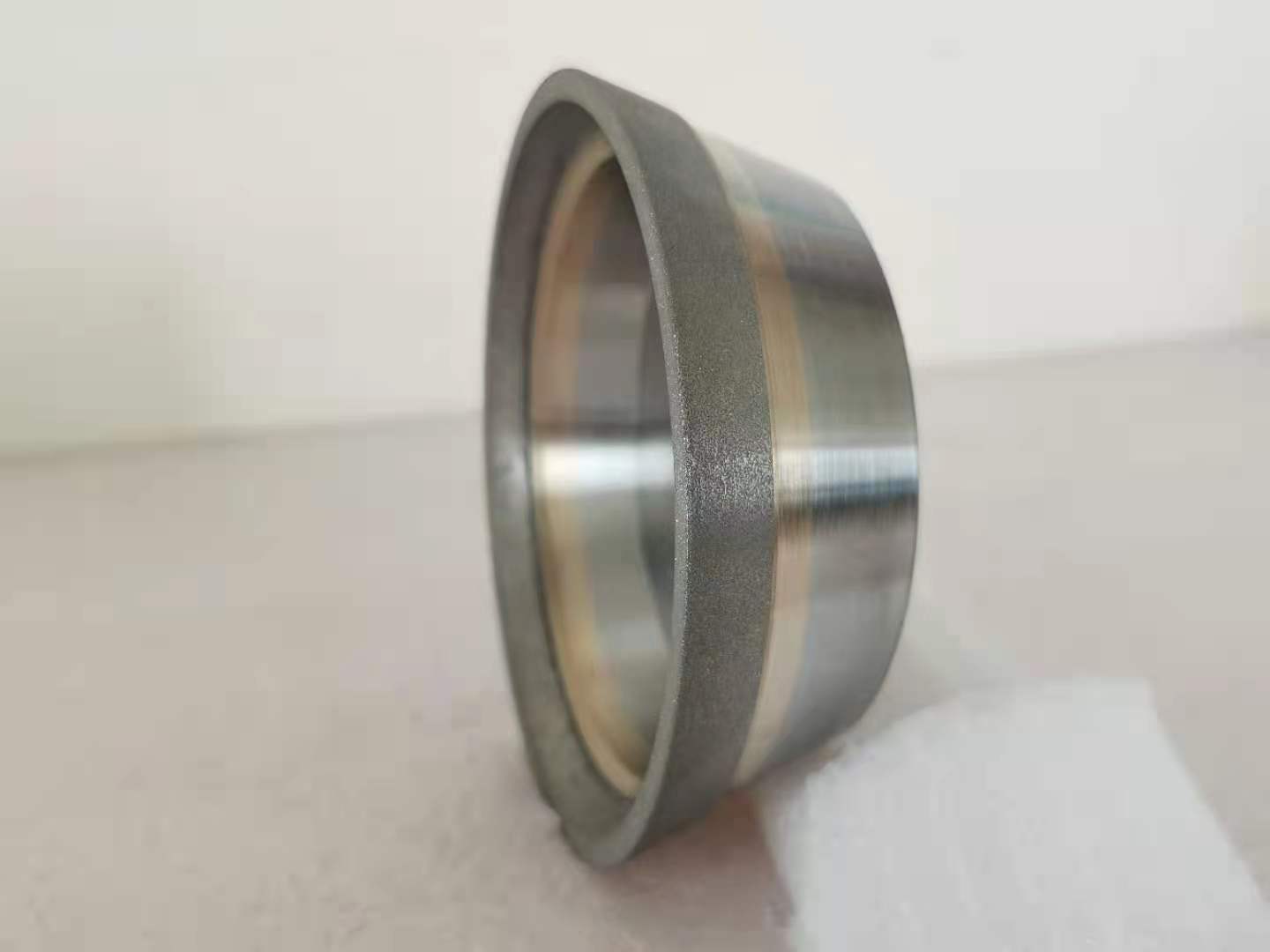

Resin Bond Grinding Wheel 11V9 100302037*70 D64

Brand Name : JC

Model Number : 11V9

Certification : ISO9001:2015,ISOCE16949

Place of Origin : China

Product name : Hybrid grinding wheel 11V9

Type : 11V9

Color : Silver

Size : 100*30*20*3*7*70

Grit : D64

Bond : Resin

Shape : Cup-shaped

Contact Now

Features:
1. Excellent sensitivity, it is easy to recondition and reconditioning during use is unnecessary
2. It ensures a great surface finish accuracy.
3. The work piece will not be burned.
4. The wheels can work on a number of odd shapes.

Our resin bond diamond and CBN wheels are available flat, cup shaped, bowl shaped, and a cylindrical shape. These bonded abrasive products can be used to sharpen cutters on various materials, slotting axis parts, cutting quartz and glass, grinding end faces, and the internal bore of metals.
These resin bond grinding wheels are suited for use in German Swiss, and Chinese grinding machines, and have garnered high praise among their users.

Resin Diamond Grinding Wheel For Cnc Grinding Machine,for Walter, Anca, Ewag, Schutte, Schneberger, Makino, TG-5, Stuer, Strausak, Cininnati, Griffo, Huffmann, Jungner Vollmer

Mainly used for all kinds of cutters.

Description

Type: such as 1A1, 1A1R, 6A2, 11V9

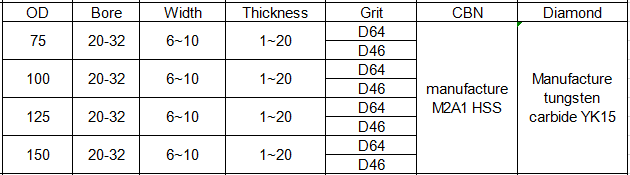

Size: Diameter, Thickness, Hole, Width and depth of abrasives layer, angle

Specification: Abrasisves(D or CBN), Grit, Bond, Concentration

Workpiece: Material, Grinding process(wet or dry)

Machine used

Resin Bond Grinding Wheel 11V9 100*30*20*3*7*70 D64
