4A2 Vitrified Diamond Grinding Wheel 15082073 D91 C125

Brand Name : JC

Model Number : 4A2 150*8*20*7*3 D91 C125

Certification : ISO9001:2015,ISOCE16949

Place of Origin : China

Payment Terms : T/T

Supply Ability : 1000 pieces in two weeks

Delivery Time : 14days

Packaging Details : Carton

Shape : 4A2

Bonding agent : Vitrifiy

Color : Silver

Usage : Grinding

Material : Aluminium

Grit : D91

Size : 150*8*20*7*3

Contact Now

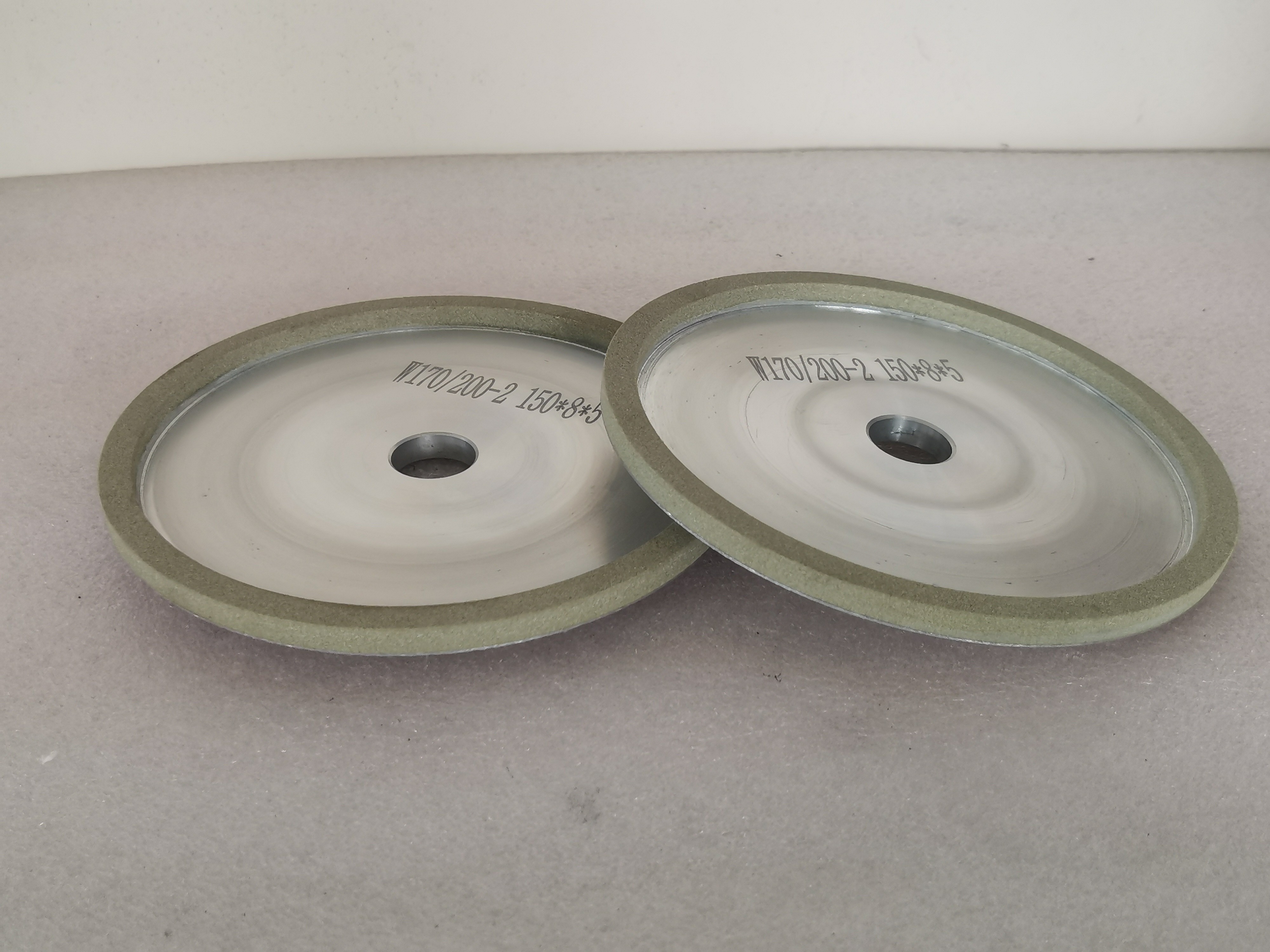

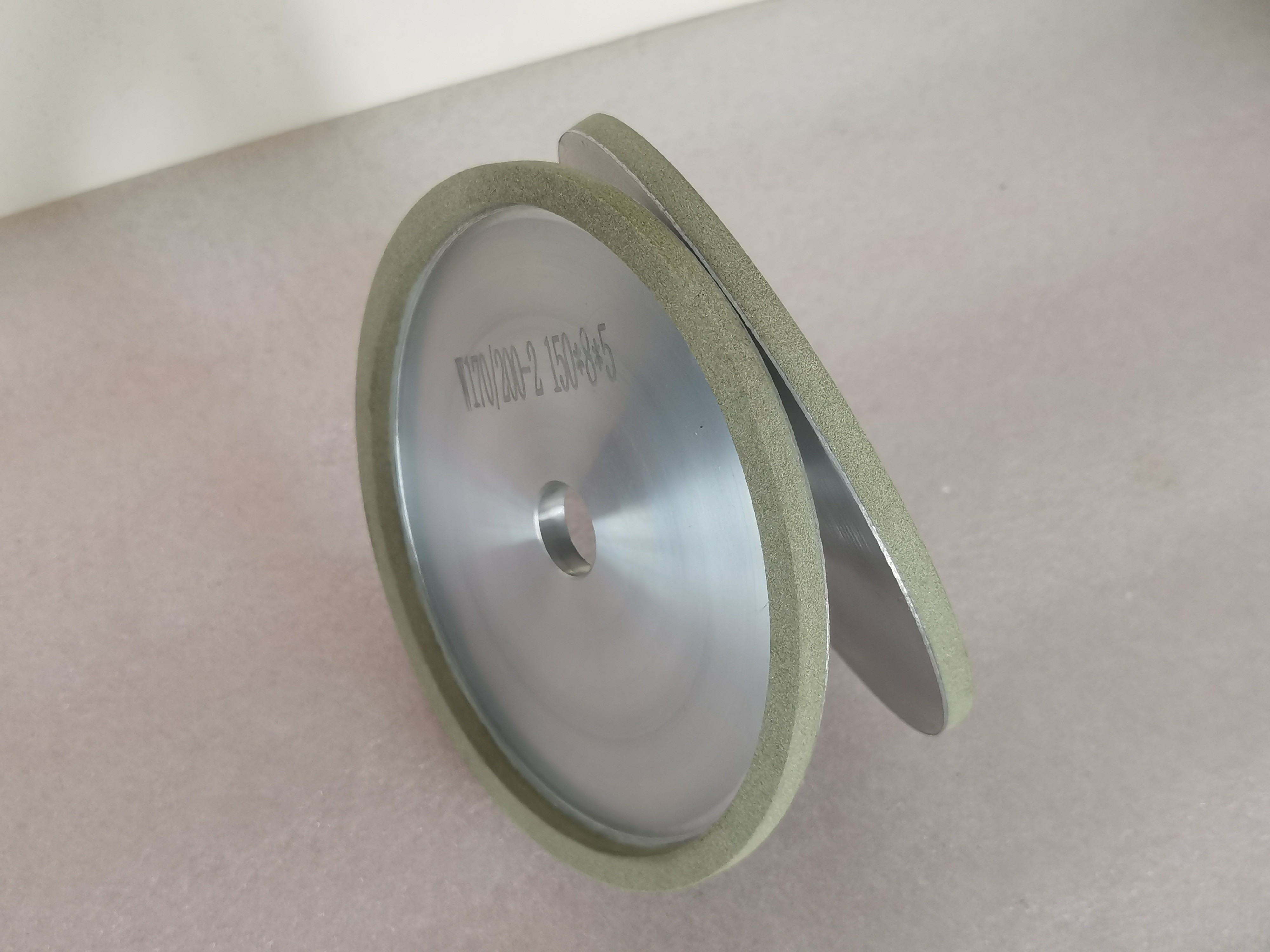

Vitrified Diamond Grinding Wheel 4A2 150*8*20*7*3 D91 C125

Name:Vitrified Diamond Grinding Wheel 4A2

Description:Vitrified diamond grinding wheels are a kind of circular bonded abrasive with through-hole in the center which made of diamond powder and vitrified (ceramic) bond. It is composed of the diamond layer, transition layer, and matrix.

The main components of the vitrified bond: some mineral raw materials and vitrified material with the low melting point, and the composition is more and complex. Its raw materials mainly include 3 parts: Part 1 is plasticity raw materials, such as loess, clay, bentonite, and etc. Part 2 is barren raw materials, such as fluorite, quartz and etc. Part 3 is accelerating melting raw materials, such as borax glass, talc, feldspar, and etc.

Applications:PCD and PCBN tools, tungsten carbide, engineering ceramic

4A2 Vitrified Diamond Grinding Wheel 150*8*20*7*3 D91 C125
